ROE Ruby-C 2.3
Unlock infinite creative possibilities with ROE Ruby-C 2.3mm LED modules. The latest generation of flexible LED modules from ROE effortlessly enables the creation of stunning displays in various configurations.

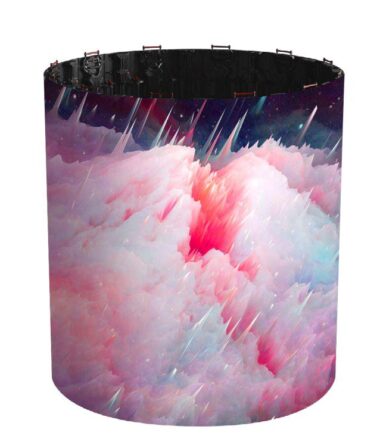

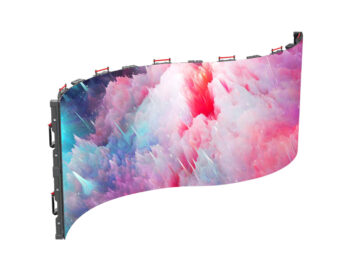

With Ruby-C modules, it’s possible to create curves up to 30 degrees, divided into 30 small steps for a smooth and even curve. Imagine cubes, curved forms, and even round and cylindrical displays. Let your creativity run wild!
Specifications
- Pixel Pitch: 2.31mm
- Max Brightness Calibrated: 1500nits
- Panel Dimension: 500mm x 500mm x 100mm 19.7” x 19.7” x 3.94”
- Panel Resolution: (H x V) 216 x 216
- Panel Weight: 7.4kg / 16.31Ibs
- Power Consumption Max / Average: 180W / 90W
- BTU Max / Average: 615 / 280
- Transparency: Solid
- Serviceability: Rear
- Curving (Concave & Convex): Concave 30° ~ Convex 30°
- Max. Hanging (panels): 20
- Max. Stacking (panels): 12
- LED Configuration: 4 in 1 common cathode
- Viewing Angle Horizontal: 140°
- Viewing Angle Vertical: 140°
- Scan Ratio: 1/12
- Refresh Rate: 3840Hz
- Gray Scale: 15bit
- Frame Material: Magnesium Alloy
- Processing Platform: MVR
- Operational Temp / Humidity: -20°~45°C, 10~90%RH | -4°~113°F, 10~90%RH
- Storage Temp / Humidity: -40°~60°C, 10~90%RH | -40°~140°F, 10~90%RH
- IP Rating: Indoor
- Certifications: CE, ETL, FCC, UKCA, WEEE
